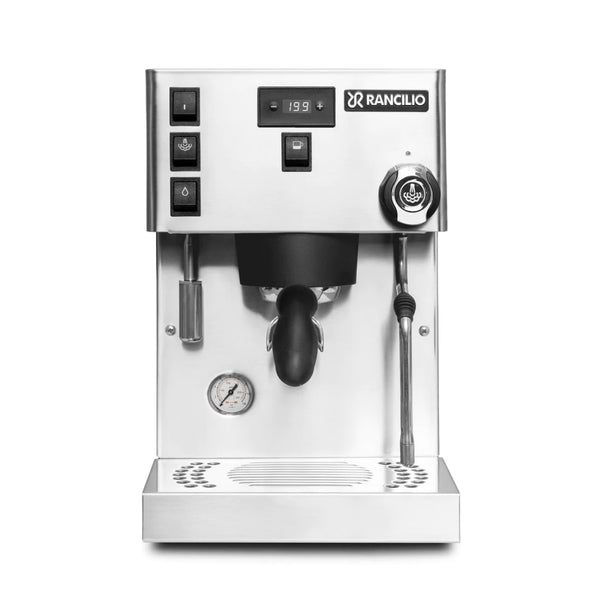

Rancilio Silvia Pro X Espresso Machine

Before First Use

Place the Silvia Pro X on a stable, heat-resistant surface. Fill the 67oz internal water reservoir. Install the water filter in the reservoir if desired. Run a full reservoir through the machine without coffee to flush both boilers.

Understanding the Dual Boiler System

The Pro X has two separate boilers: a 300ml brew boiler and a 1-liter steam boiler. Each has its own PID controller for independent temperature regulation. The steam boiler is only pressurized when the steam switch is activated, allowing you to brew and steam simultaneously without temperature interference.

Setting Temperatures via the PID

The front-facing digital PID display shows current and target brew temperature. Adjust in one-degree increments using the interface buttons. The factory brew temperature is approximately 200°F. Steam boiler temperature is separately adjustable.

Configuring Soft Preinfusion

Access preinfusion settings through the PID interface. The Pro X offers variable soft infusion from 0 to 6 seconds — water is delivered at reduced pressure before the pump ramps to full bar. For most espresso, start with 3–4 seconds and adjust based on results.

Setting the Auto-On Timer

Program a wake-up time through the PID so the machine is ready when you are. The Auto On feature allows you to set and save daily start times.

Pulling a Shot

Load and tamp your portafilter. Press the brew button. The PID-managed system will run preinfusion, then ramp to full extraction pressure. The shot timer on the PID display shows elapsed time automatically.

Leveraging Dual Boiler Workflow

Unlike the single-boiler Silvia, the Pro X lets you steam milk without a boiler switch. Pull your shot, begin steaming immediately — both processes happen at stable independent temperatures. This is the biggest workflow upgrade from the original Silvia.

Temperature Profiling by Coffee

Lighter roasts often extract better at 202–204°F, while darker espresso blends tend to prefer 197–200°F. Dial in each coffee by adjusting the brew PID and noting results.

Variable Soft Infusion Tips

Longer preinfusion (5–6 seconds) helps with lighter, harder-to-wet roasts. Shorter infusion (2–3 seconds) works well for oilier, darker roasts. If you're experiencing channeling, more preinfusion time often helps.

Pressure Gauge Reading

The Pro X includes a pressure gauge above the drip tray. During extraction, aim for 8–9 bar. If pressure is consistently low or high, check your grind and dose first before adjusting the OPV.

Daily Cleaning

After each session, wipe the steam wand and purge. Remove and rinse the portafilter and basket. Wipe the group head area. Empty and rinse the drip tray.

Weekly Backflushing

Use the included backflush basket and a Rancilio cleaning tablet (or Cafiza). Run 5–6 backflush cycles of 10 seconds on / 10 seconds off. Follow with 5–6 cycles of plain water backflushing. The Pro X's 3-way solenoid makes this process clean and effective.

Water Filter

Replace the included water filter every 2–3 months or per water quality. The filter reduces scale buildup in both boilers.

Steam Boiler Not Pressurizing

Ensure the steam switch is activated and allow 2–3 additional minutes for the steam boiler to come to pressure. If no steam pressure develops, check the PID steam temperature setting.

Preinfusion Not Running

Verify preinfusion is enabled and duration is set to a non-zero value in the PID menu. Check firmware settings haven't been reset.

Pressure Gauge Reading Too Low During Extraction

Pressure below 7 bar during extraction usually means the grind is too coarse or the dose is too light. Adjust finer and increase dose before suspecting an OPV issue.

Machine Leaking at Group Head

Inspect the group head gasket. The Silvia Pro X uses the same 58mm gasket as the standard Silvia — replacement is straightforward. Contact us if the leak persists after gasket replacement.
